Developing SWIM with git/GitLab and recent code changes
Michel Wortmann & Stefan Liersch
June 19, 2018
Version control with git
Why bother with version control systems?
- collaborate and share
- storing and managing multiple and parallel versions
- not just name a directory
swim_final_plus_extra_2010-11-11
- not just name a directory
- helping with changes and restoring previous versions of files by giving them a history
- understanding what was changed when by who
- merging two versions
What is
?
- git is a fast, distributed version control software
- Almost all operations are local (i.e. fast)
- Very well documented online and on the commandline
- Distributed: every user has a copy of the entire project repository
- Not just for large software or project groups
- personal configuration files
- papers, documents (works best if plain text)
- Allows and encourages easy branching
- e.g. experiment with new features, bug fixes in your code
- merging is easy
- Most open-source software projects are now developed using git
(inspired by C. Linstead)
Commits and branches
GitLab at PIK
What is GitLab?
- Open-source platform to host git repositories
- Like GitHub but non-commercial and can be self-hosted
- Gives advice/documentation for most functionalities
- Personal and group (e.g. SWIM group) repositories
Features
- Repository management
- Merge requests and code reviews
- Issue tracking
- Activity feeds and wikis
PIK’s GitLab
- https://gitlab.pik-potsdam.de
- Documentation by Ciron Linstead (and a presentation)
- Fully functional community edition

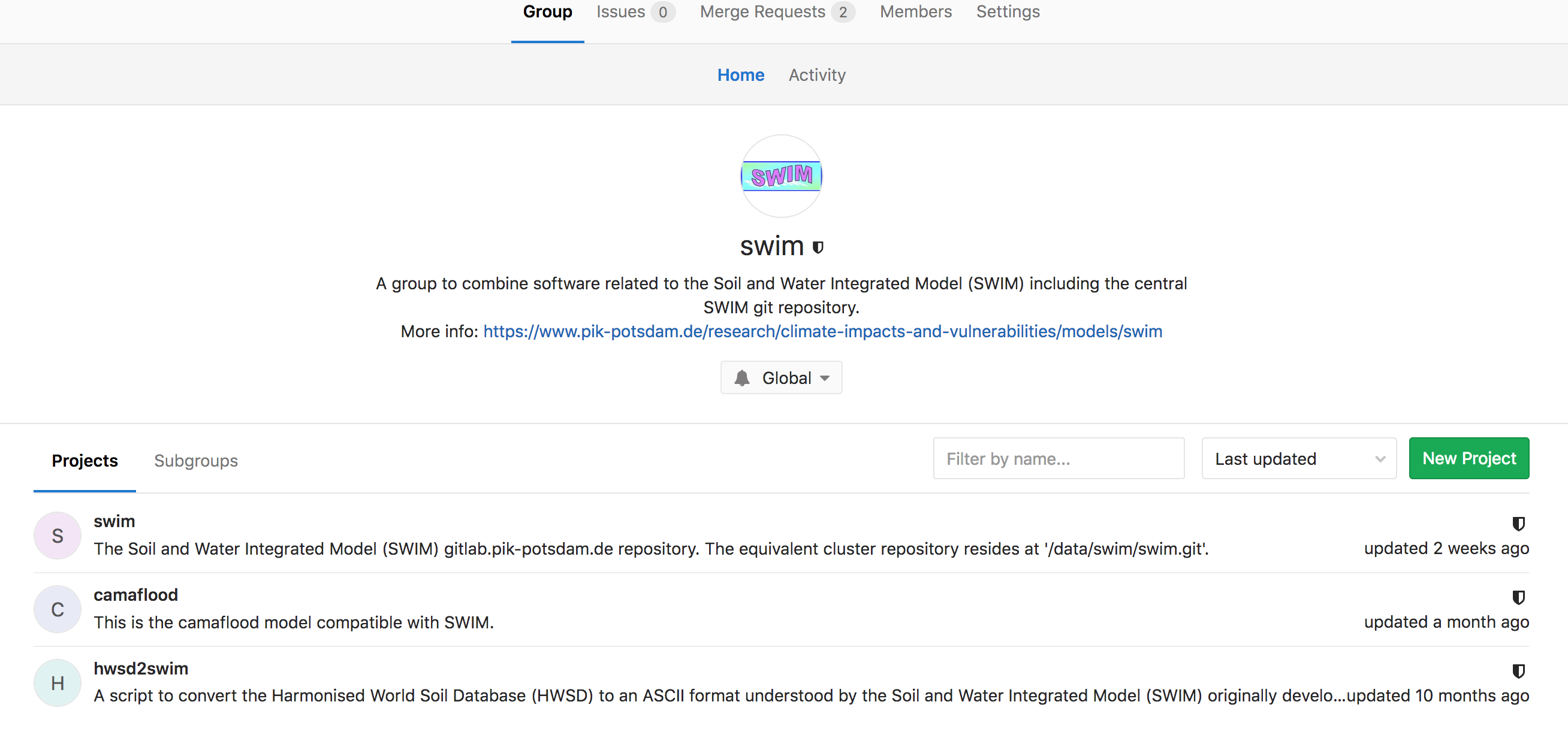

The SWIM group
Recent SWIM code changes
Fully functional minimal test project
- The Blankenstein (Saale) catchment, ~1000km²
- 2 subcatchments, 10 subbasins, 185 hydrotopes
- syncronised with the test project of m.swim
code/
docs/
project/
input/
blank.bsn
blank.str
...

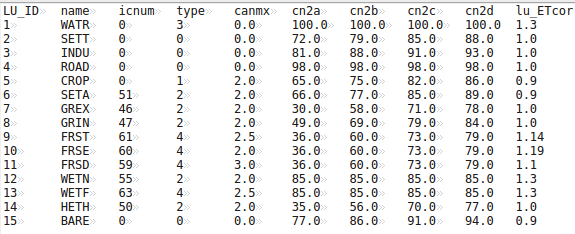

output/Flexible landuse cover classes
- rather than 15 static classes, flexible number
- replacing
cntab.datfor*.lutfile![]()
A more convenient Makefile
# executable with debug flags using gfortran (as before)
make
make swim
# speed-optimised executable using gfortran
make fast
# like fast but with the cluster Intel ifort compiler
make cluster- shorter and more flexible
- some errors/warnings removed, more cleaning needed
Single .sub, .rte, .gw files to tables
- combined single files into simple tables
b3SubFilesswitch in.bsnfile for transition
input/
Sub/
groundwater.tab
subbasin.tab
routing.tabWork-in-progress: Full documentation in Latex
docs/contains a latex project of new developments- The SWIM Manual (Krysanova et al., 2000) needs to be translated from Word to latex (started)
code/
docs/
figures/
CHANGES_SWIM_2015-11.txt
SWIM_new_developments_documentation.pdf
SWIM_new_developments_documentation.texContributing to the SWIM repository
Methods
GitLab merge requests
- for improvements, new features
- should be required if input files change
- code review
- documentation & publication of change on GitLab
Direct push
- for obvious bugs and minimal changes
- only available to masters/owners
- unreviewed changes lead to messy code (like in the past with SVN) 👎
Record issues
- filing an issue to describe a problem or a feature on GitLab
- fast and uncomplicated
- ensures the problem is not forgotten
- merge requests can later be added to the issue
Hands on git
Prerequisites
- git installed on the commandline (e.g. cluster console)
- a local folder to keep source code repositories
- e.g.
source/
- e.g.
- access to GitLab
- your SSH key uploaded to GitLab
- top right icon > settings > SSH keys
- copy/past output of
cat ~/.ssh/*.pub
- Fork the
swim/swimrepository
Getting and creating a repository
Copy/download an existing one
Creating a new (local) repository
Inspection commands and help
git status -h # show current changes and branch
git log --help # browse history
git diff -h # show code changes
git checkout -h # switch branches or restore files
gitk & # visual log browser- help is available for every git command via
-h(short) and--help(full help)
Recording changes
# stage files
git add <file path> <file path> ...
git commit -m 'A message describing the change.'
# or commit all changes in working directory
git commit -a -m 'A message describing all changes.'- only recorded in own clone of repository
- Undoing commits

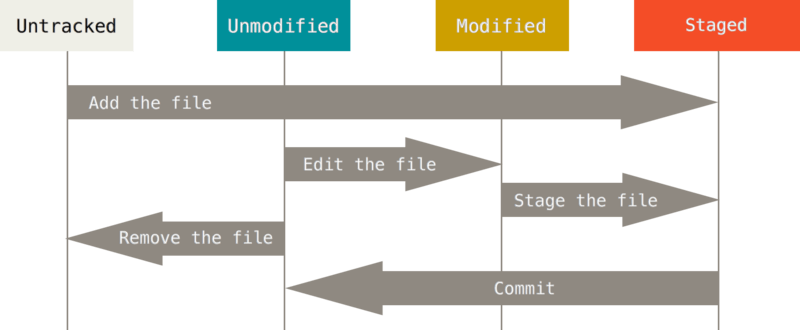

- file status - .gitignore file
Branches
Hands on GitLab
Creating a new repository in GitLab
- Create New Project from user home
- call it
<your name>s_test
- call it
- Then link the local repository and push your project
Linking with online repositories
- A ‘remote’ is a reference to a repository URL/path
- Every branch may be connected to any remote branch
# show all remotes setup
git remote -v
# add any remote, e.g. your fork or the trunk
git remote add <remote name> <url>
# get updates without changing files
git fetch <remote name>
# get updates and merge/update files
git pull <remote name> <remote branch>
# push to default remote branch
git push
# explicit for non-default branches
git push <remote name> <remote branch>Merge requests
- Pull latest trunk version
- Create new branch
- Make and commit changes
- Push new branch to fork
- Submit merge request
1. Pull latest trunk version
-> for testing, fork your neighbours test project, clone it and add the ‘trunk’ remote
2. Create new branch
3. Make and commit changes
e.g.
- don’t forget to implement and test changes in Blankenstein project
- as many commits possible as needed
4. Push new branch to fork

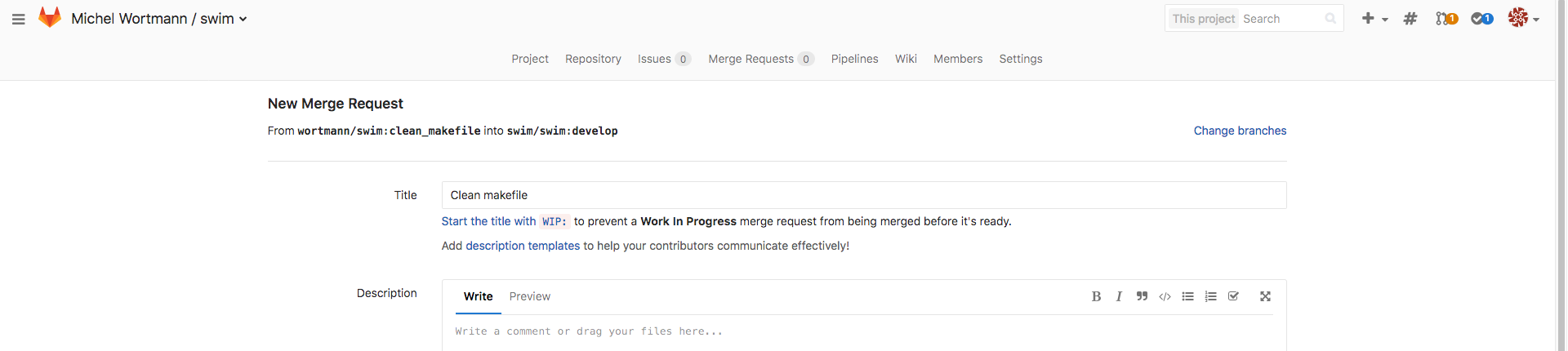

5. Submit merge request
Testing someone else’s merge request
Checkout merge request branch
git fetch git@gitlab.pik-potsdam.de:liersch/swim.git flex_lulc
git checkout -b liersch/swim-flex_lulc FETCH_HEADCompare differences to other branch or commit
git diff master --stat
git diff master
git diff HEAD~1 # or ea03d475ded1547
git diff master <file path>(GitLab will remind you what to do)
Conclusions and best practices
Conclusions
- It will take some time and practice to be productive and efficient in git
- We need to adopt some best practices for our group, e.g.:
- always implement and test changes with Blankenstein test project
- document changes in
doc/ - write meaningful commit and merge request messages
- We should think of/copy some basic coding conventions
Coding conventions
- formatting, naming conventions, function layout
- e.g. like PISM, CCLM or the European Standards for Writing and Documenting Exchangeable Fortran 90 Code
- increases code legibility and clarity
- reduces need for documentation
- reduces time to implement new features
- guidelines to tidy up SWIM
- should be precise and enforceable, not opinionated
An example
- Variable names should use lower case letters and (if necessary) digits separated by underscores, for example: ice_thickness. (from PISM)
- One statement per line. (universal)
- Functions should not have side effects (if at all possible). In particular, do not use and especially do not modify “global” objects… (from PISM)
- All ascii input and output tables should be CSV and have a .csv extension. (personal recommendation)
