Persistenz

Ähnlichkeit von aufeinanderfolgenden Strömungsmustern über Europa

Europa/Deutschland: 50-55°N / 10-15°E

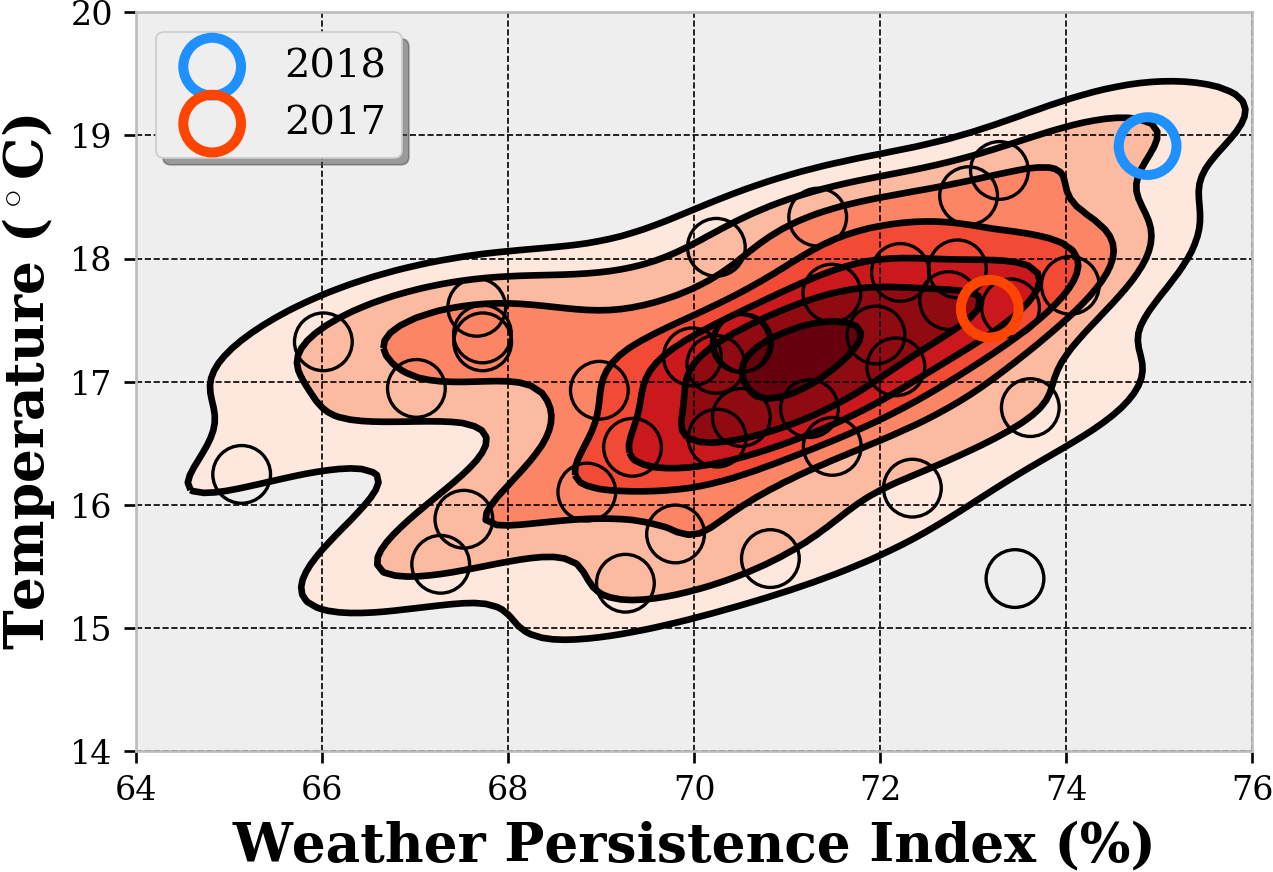

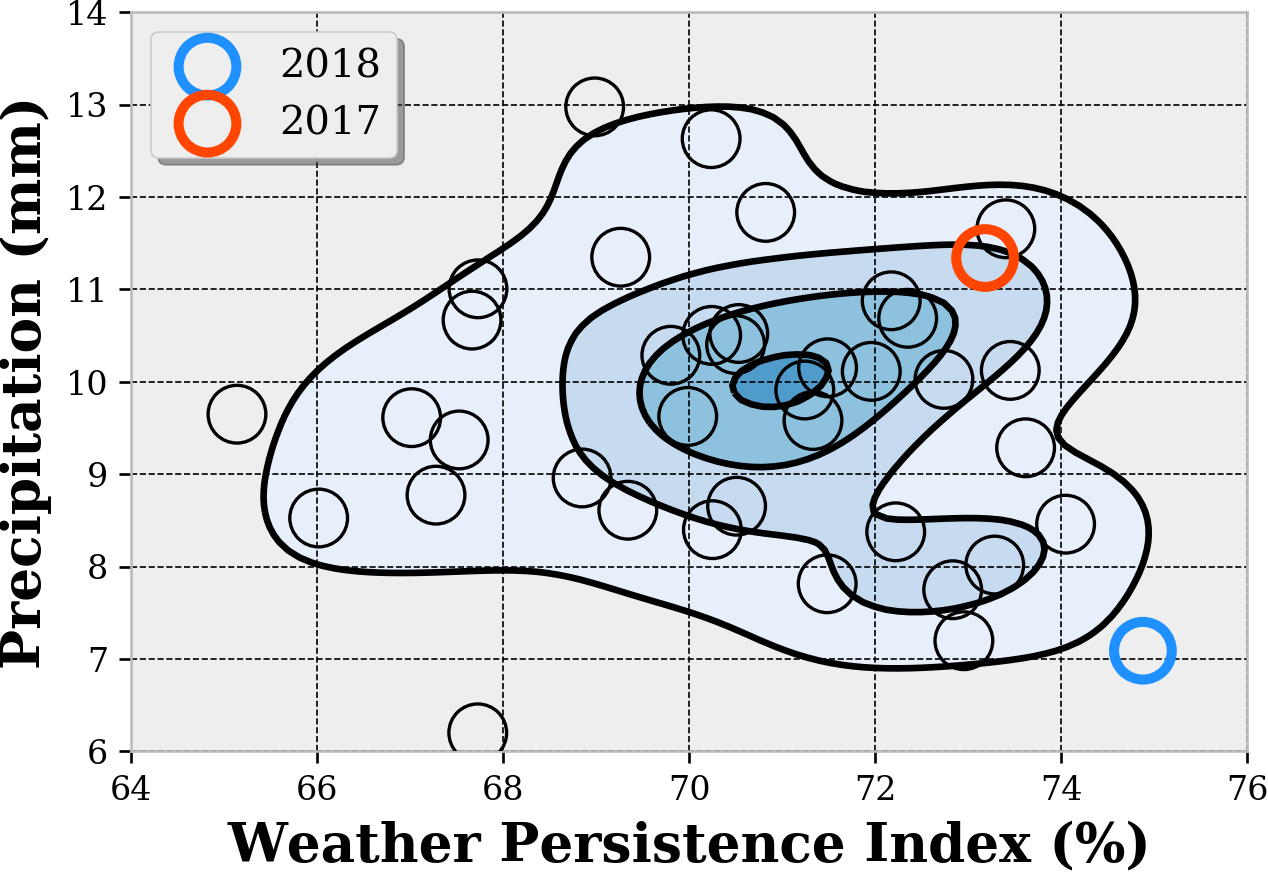

WPI ~ tas WPI ~ pr

Abb.: Eine hohe Persistenz von großräumigen Strömungsmustern im Sommer über Europa können in Ostdeutschland sowohl eine heiße und trockene (bspw. 2018) aber auch warme und feuchte (bspw. 2017) Saison begünstigen.


Code

Importing

import sys
import os
import matplotlib
matplotlib.use('Agg') # Must be before importing matplotlib.pyplot or pylab!
import matplotlib.pyplot as P
from mpl_toolkits.basemap import Basemap,shiftgrid
from netCDF4 import Dataset
import numpy as N
from scipy import stats as S
from scipy import signal

params = {      'legend.fontsize': 12,\
                'font.family': 'serif',\
                }
P.rcParams.update(params)
P.style.use('bmh')

Running

jo = N.arange(1981,2020,1)

for p in ['tas','pr']:

    nc = Dataset('../data/era/wpi/1981-2019_JJA_abs.cdf','r')

    ssim = N.array(nc.variables['persistence'][:])

    nc.close()

    nc = Dataset('../data/era/%s/1981-2019_JJA_abs.cdf'%p,'r')

    data = N.array(nc.variables[p][:])

    lon = N.array(nc.variables['lon'][:]);nx = len(lon)
    lat = N.array(nc.variables['lat'][:]);ny = len(lat)

    nc.close()

    if(p=='pr'): data = data*24.*3600.
    if(p=='tas'): data = data-273.14

    ###############################

    P.figure(figsize=(6,4))
    ax = P.subplot(111)

    iy = N.where((lat>50)&(lat<55))[0]
    ix = N.where((lon>10)&(lon<15))[0]

    nj = 38

    xx = ssim[:,iy,:]
    yy = data[:,iy,:]

    xx = xx[:,:,ix]
    yy = yy[:,:,ix]

    values = N.vstack([xx.ravel(),yy.ravel()])
    kernel = S.gaussian_kde(values)

    if(p=='tas'): X, Y = N.mgrid[64:76:100j,14:20:100j]
    if(p=='pr'): X, Y = N.mgrid[64:76:100j,6:14:100j]

    positions = N.vstack([X.ravel(), Y.ravel()])
    Z2 = N.reshape(kernel(positions).T, X.shape)

    if(p=='tas'):

        CF=P.contourf(X,Y,Z2*100.,N.arange(1,8,1),cmap=P.cm.Reds,extend='max')
        P.contour(X,Y,Z2*100.,N.arange(1,8,1),colors='k')

    if(p=='pr'):

        CF=P.contourf(X,Y,Z2*100.,N.arange(1,8,1),cmap=P.cm.Blues,extend='max')
        P.contour(X,Y,Z2*100.,N.arange(1,8,1),colors='k')

    for j in jo:

        id = N.where(jo==j)[0]
        id = id[0]

        P.scatter(N.mean(xx[id,:,:]),N.mean(yy[id,:,:]),s=300,c='None',ec='k',lw=1,zorder=5)

    id = N.where(jo==2018)[0]
    id = id[0]

    P.scatter(N.mean(xx[id,:,:]),N.mean(yy[id,:,:]),s=300,c='None',ec='dodgerblue',lw=3,zorder=10,label='2018')

    id = N.where(jo==2017)[0]
    id = id[0]

    P.scatter(N.mean(xx[id,:,:]),N.mean(yy[id,:,:]),s=300,c='None',ec='orangered',lw=3,zorder=10,label='2017')

    P.xlim(64,76)
    if(p=='tas'):P.ylim(14,20)
    if(p=='pr'):P.ylim(6,14)
    P.grid(color='k')
    P.legend(loc=2,shadow=True)

    P.tick_params(direction='out')
    P.xlabel('Weather Persistence Index (%)',fontsize=16,weight='bold')
    if(p=='tas'): P.ylabel('Temperature ($^\circ$C)',fontsize=16,weight='bold')
    if(p=='pr'): P.ylabel('Precipitation (mm)',fontsize=16,weight='bold')

    P.savefig('./img/wpi-%s0.png'%p,dpi=240,transparent=False,bbox_inches='tight',pad_inches=0.0)
