Importing

# -*- coding: iso-8859-1 -*-

import sys
import numpy as N
#import shapefile
import scipy.stats as stats
import pylab as P
from matplotlib.collections import PatchCollection
from pylab import Polygon
from mpl_toolkits.basemap import Basemap
import shapefile
from osgeo import ogr

#P.style.use('bmh')

params = {'legend.fontsize': 8,'font.family': 'serif'}
P.rcParams.update(params)

Plotting

fig = P.figure(figsize=(12,4))

ax = fig.add_subplot(111)

m = Basemap(projection='merc',llcrnrlat=47,urcrnrlat=55.2,llcrnrlon=5,urcrnrlon=16,resolution='l')

m.readshapefile('../data/shp/deu', 'pds',zorder=10)

patches   = []

for info, shape in zip(m.pds_info, m.pds):

    patches.append( Polygon(N.array(shape), True, color='None') )

pc = PatchCollection(patches, match_original=True, edgecolor='k', linewidths=0.1, zorder=2)#, alpha=0.5)

ax.add_collection(pc)

m.readshapefile('../data/shp/opt', 'pds',zorder=10)

patches   = []

for info, shape in zip(m.pds_info, m.pds):

    patches.append( Polygon(N.array(shape), True, color='r') )

pc = PatchCollection(patches, match_original=True, edgecolor='r', linewidths=0.1, zorder=2)#, alpha=0.5)

ax.add_collection(pc)

dat = N.genfromtxt('../data/csv/stations.tab',names=True,dtype=None)

no = len(dat['lon'])

for o in range(no):

    x,y = m(dat['lon'],dat['lat'])

    P.scatter(x,y,c='k',s=1,lw=0.0,zorder=30)

P.axis('off')

fig.tight_layout()

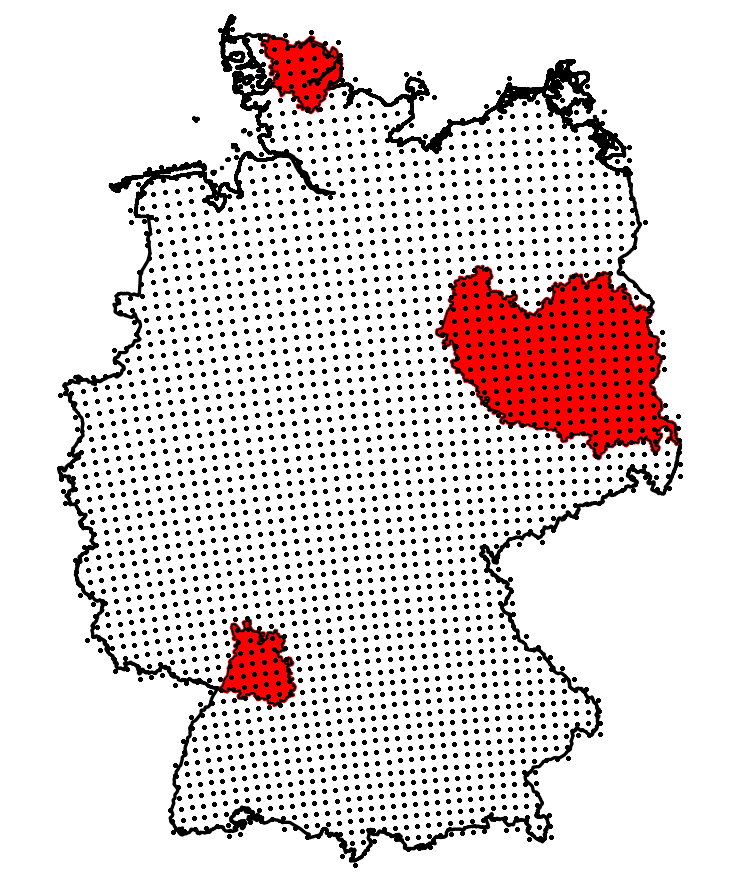

fig.savefig('./img/karten.png',dpi=240,transparent=False,bbox_inches='tight',pad_inches=0.0)
