RCMs

Events

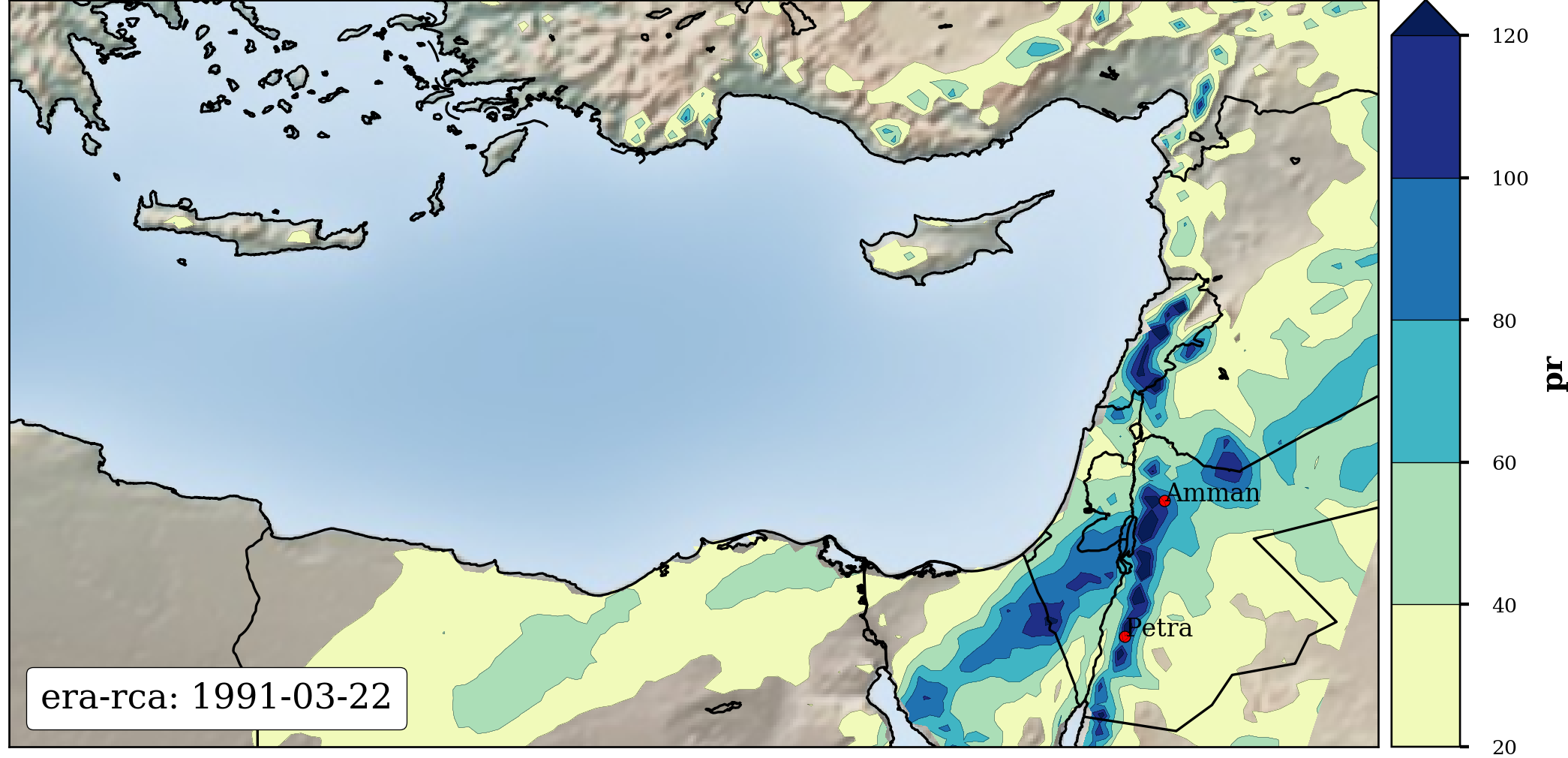

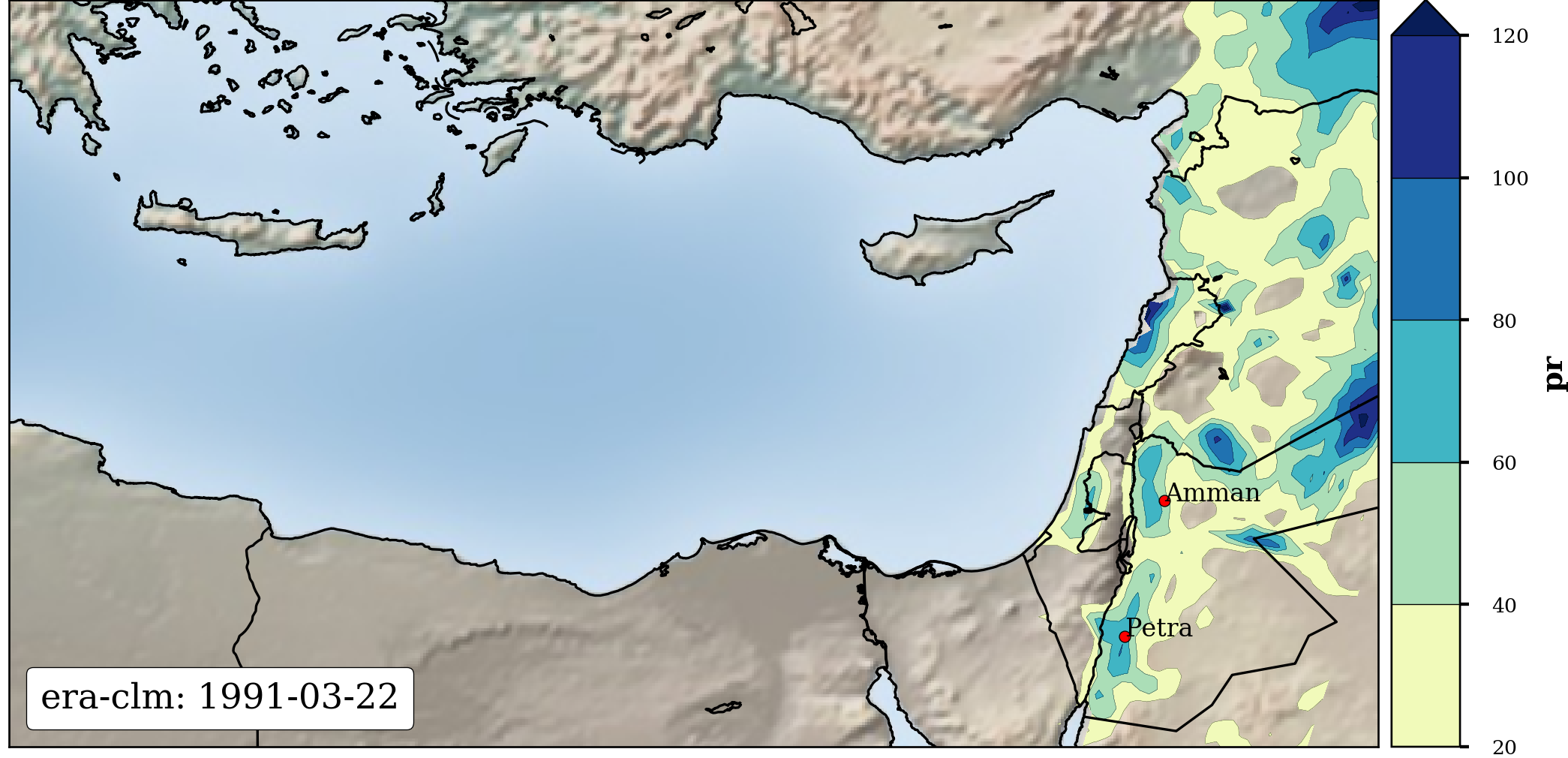

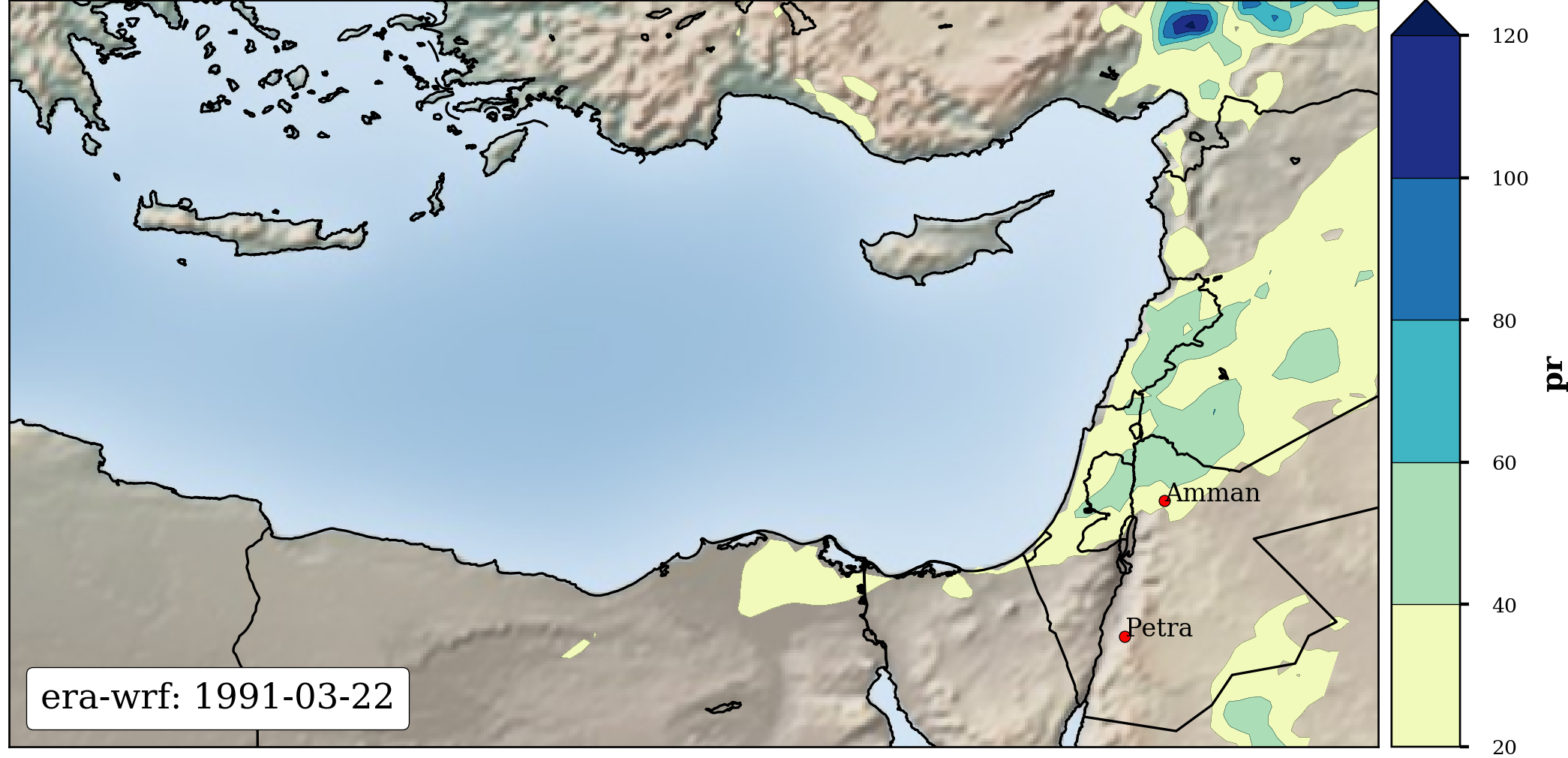

1991-03-22

ERA-RCA	ERA-CLM	ERA-WRF

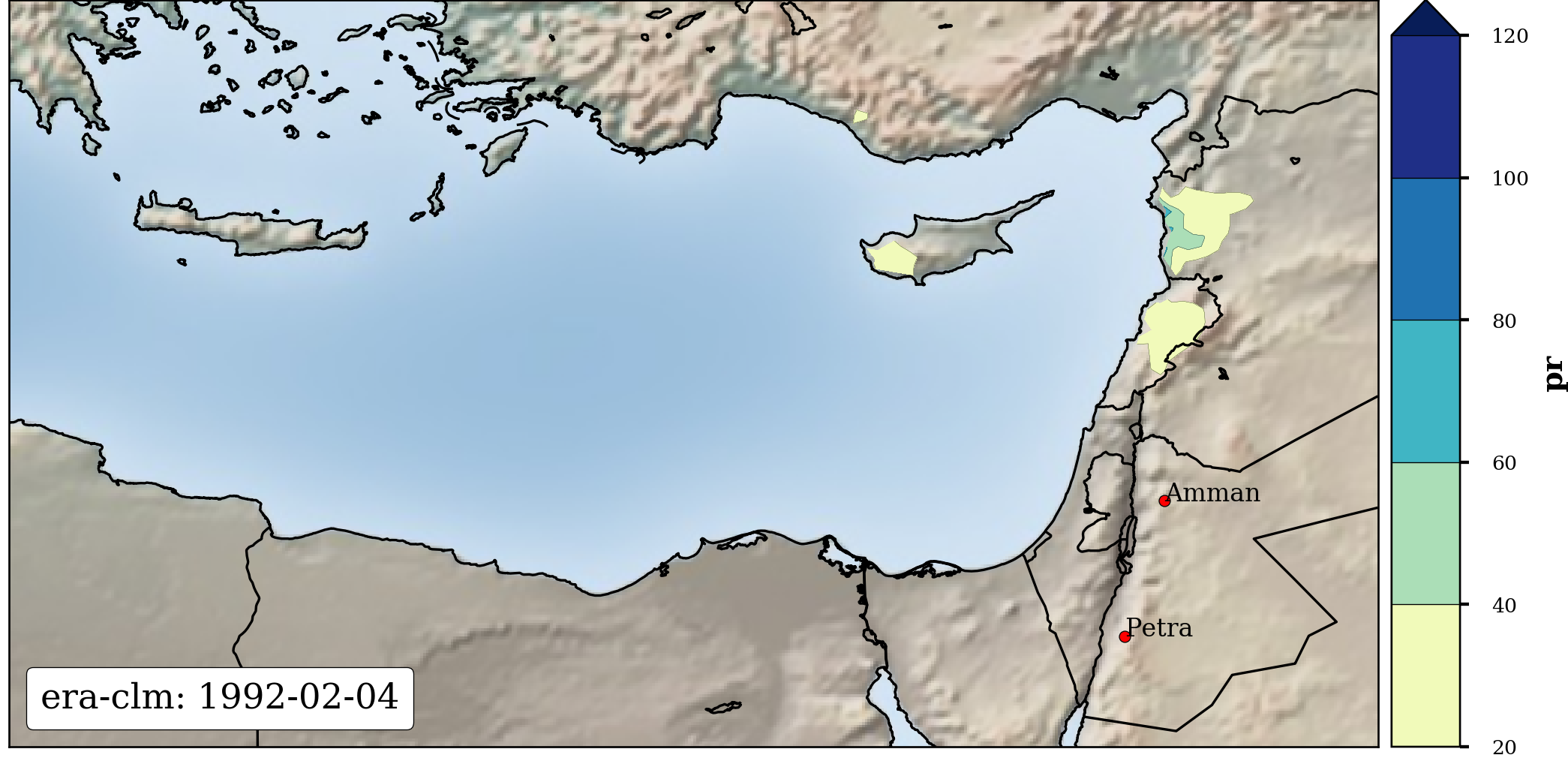

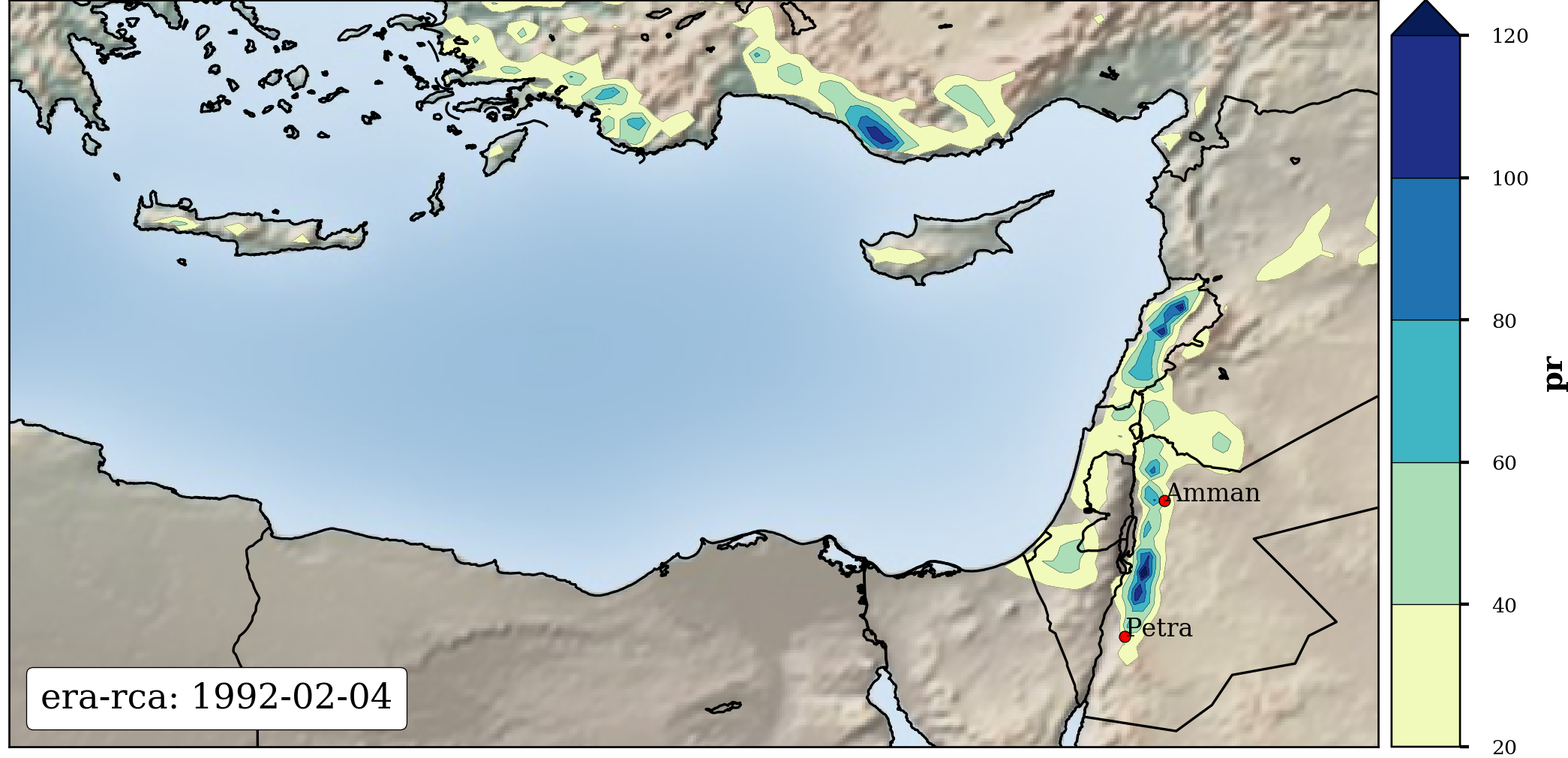

1992-02-04

ERA-RCA	ERA-CLM	ERA-WRF

Code

Importing

import sys
import os
import matplotlib
matplotlib.use('Agg') # Must be before importing matplotlib.pyplot or pylab!
import matplotlib.pyplot as plt
import matplotlib.pyplot as P
from mpl_toolkits.basemap import Basemap,shiftgrid,maskoceans
from matplotlib.path import Path
from matplotlib.patches import PathPatch
#from osgeo import gdal
import numpy
import shapefile
from netCDF4 import Dataset
import numpy as N
from netCDF4 import Dataset, num2date,date2num
from scipy import signal,stats
import matplotlib as mpl
import matplotlib.colors as colors
from datetime import datetime
from mpl_toolkits.axes_grid1.inset_locator import inset_axes
from matplotlib.offsetbox import AnchoredText
from skimage.metrics import structural_similarity as ssim

plt.style.use('seaborn-talk')

params = {      'legend.fontsize': 8,\
                'font.family': 'serif',\
                }
plt.rcParams.update(params)

def ma(a,n=3):
    ret=N.cumsum(a,dtype=float)
    ret[n:]=ret[n:]-ret[:-n]
    return ret[n-1:]/n

Reading

for date in ['1992-02-04','1991-03-22']:
    for rcm in ['era-rca','era-clm','era-wrf']:

        file = '../data/rcms/%s_%s.cdf'%(rcm,date)

        nc = Dataset(file,'r')

        lon = N.array(nc.variables['lon'][:]);nx = len(lon)
        lat = N.array(nc.variables['lat'][:]);ny = len(lat)
        dat = N.array(nc.variables['pr'][:])*24*3600

        nc.close()

        print (dat.shape)

        P.figure()
        ax = P.subplot(111)

        m = Basemap(projection='cyl',llcrnrlat=29,urcrnrlat=38,llcrnrlon=22,urcrnrlon=38.5,resolution='h')
        m.drawcoastlines(color='k')
        m.drawcountries(linewidth=1,color='k')
        #m.drawlsmask(land_color = "gray",ocean_color="gray",resolution = 'h')
        m.shadedrelief()

        xx,yy = m(lon,lat)

        dats = maskoceans(xx,yy,dat[0,:,:])

        lev = N.arange(20,140,20)

        CM = ax.contourf(xx,yy,dats,levels=lev,cmap=plt.get_cmap('YlGnBu'),extend='max')
        ax.contour(xx,yy,dats,levels=lev,colors='k',linewidths=0.1)

        cbar = m.colorbar(CM,location='right',extend='max',pad="1%",drawedges=True,ticks=lev)
        cbar.set_label('pr',fontsize=12,weight='bold')
        cbar.ax.tick_params(labelsize=8)

        at = AnchoredText('%s: %s'%(rcm,date),prop=dict(size=14),frameon=True,loc='lower left')
        at.patch.set_boxstyle("round,pad=0.,rounding_size=0.2")
        ax.add_artist(at)

        xx,yy = m(35.930359,31.963158)
        m.scatter(xx,yy,s=20,c='r',ec='k')
        P.text(xx,yy,'Amman',fontsize=10)

        xx,yy = m(35.444832,30.328960)
        m.scatter(xx,yy,s=20,c='r',ec='k')
        P.text(xx,yy,'Petra',fontsize=10)

        plt.savefig('./img/%s_%s.png'%(rcm,date),dpi=240,transparent=False,bbox_inches='tight',pad_inches=0.0)
