Predictors of heavy rainfall in Jordan and Applications

by P. Hoffmann et al.

height:50 width:250 height:50 width:60
height:50 width:150









Investigating the causal linkage between

Large Scale Circulation and Local Rainfall Patterns

height:50 width:250 height:50 width:60
height:50 width:150

Retrospective Analysis of Heavy Rainfall Events in Jordan

height:500 width:1100
Sortable Table of Events

height:50 width:250 height:50 width:60
height:50 width:150

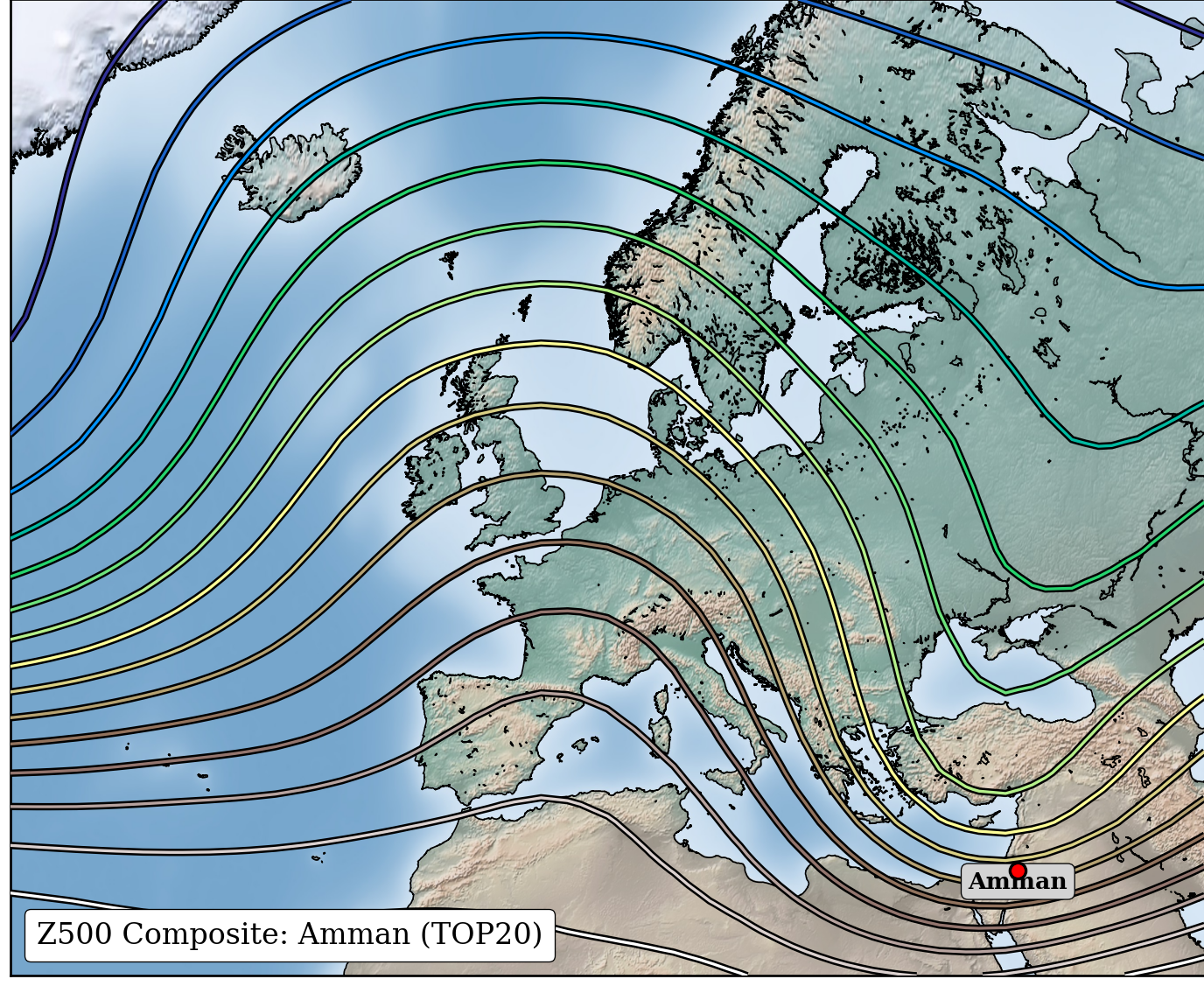

Composite Patterns of Heavy Rainfall Events in Jordan: Amman

Circulation Pattern Rainfall Pattern
height:450 width:550 height:450 width:550
height:50 width:250 height:50 width:60
height:50 width:150

Causalities of Heavy Rainfall Events in Jordan (Amman)

Months|Sea Surface & Free Atmosphere Temperature Anomalies|Circulation Patterns

height:450 width:1100
Decision Tree Analysis

height:50 width:250 height:50 width:60
height:50 width:150

Global Satellite Mapping of Precipitation (GSMaP)















How to make this nowcast data available in a suitable form for Jordan?

height:50 width:250 height:50 width:60
height:50 width:150

In a Design of a RADAR (+ ICON forecast)

height:450 width:565 height:450 width:565
AMMAN WEATHER

height:50 width:250 height:50 width:60
height:50 width:150
height:50 width:250 height:50 width:60
height:50 width:150

In a Design of a RADAR (+ ICON forecast)

height:450 width:565 height:450 width:565
AHRWEILER WEATHER

height:50 width:250 height:50 width:60
height:50 width:150

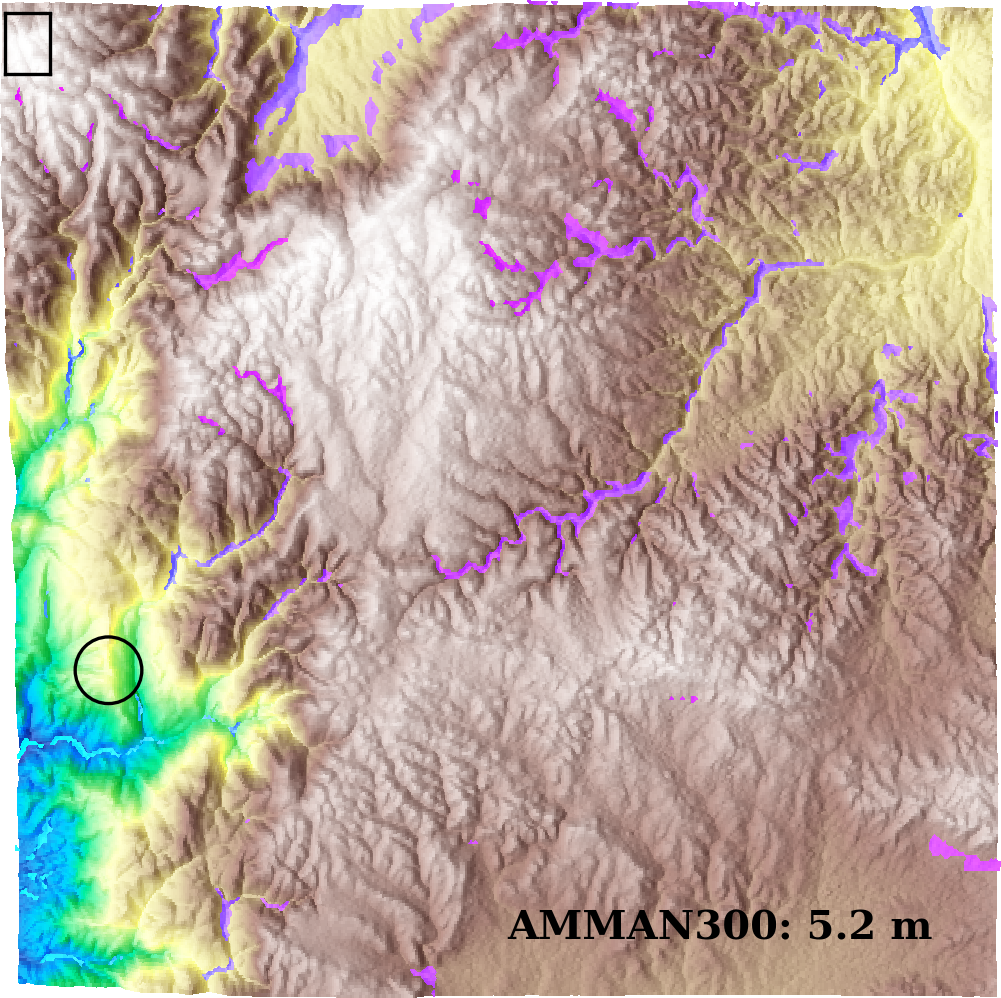

Storm Water Accumulation Index: 300 (A Simplification)

Translation of Total Precipitation to an Accumulated Water Level over Critical Terrain

height:500 width:550height:500 width:550
Flash Flood Risk Map

height:50 width:250 height:50 width:60
height:50 width:150







Supplementary Material

height:50 width:250 height:50 width:60
height:50 width:150

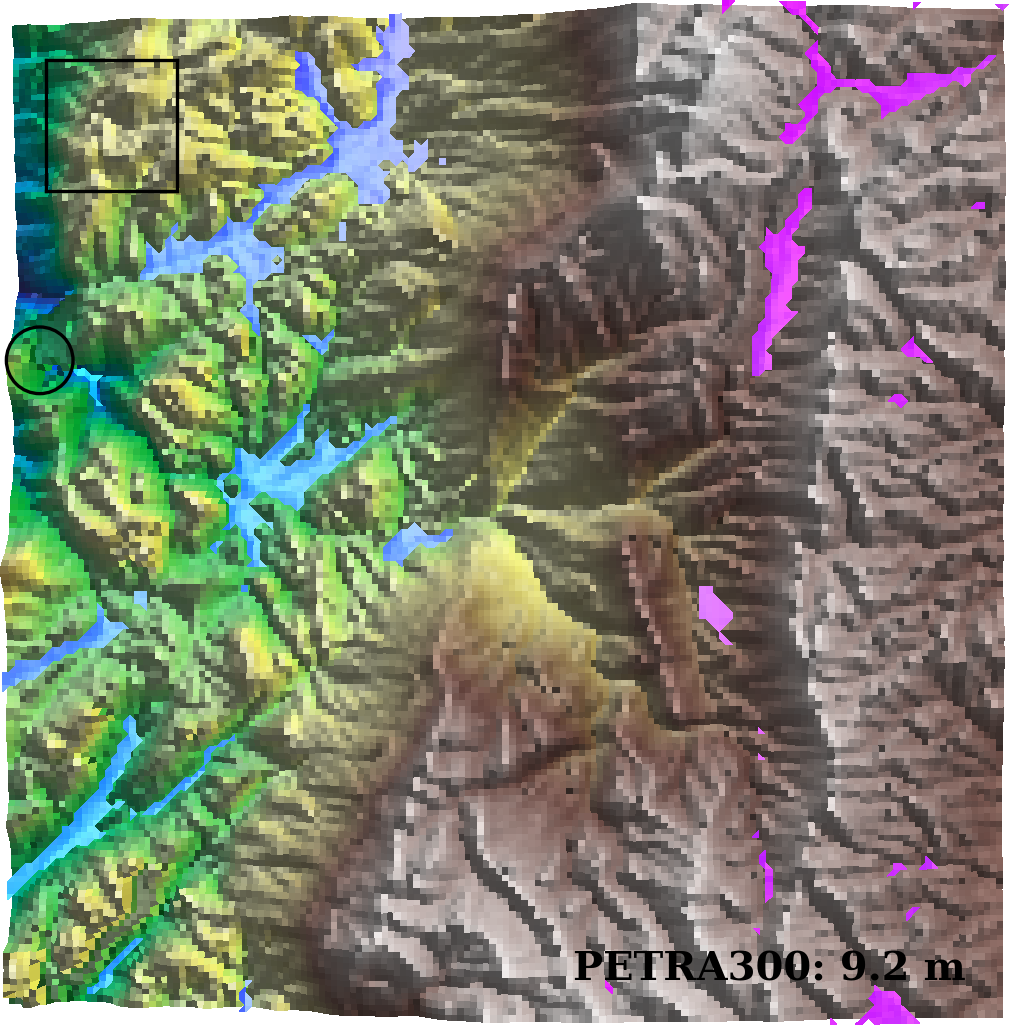

Indexing of Flash Flood Risks

  • DEM, ~100 m: Jordan
  • cutting out the region of interest: Petra
  • defining an (moving) analysis box: 20 x 20 = 400 Pixel
  • Parameter:
    • Hill (Zmax-Zx): 100 m
    • Valley: 50 m
    • Total Rainfall (TP): 300 mm = 0.3 m
  • scaling of the elevation data by the minimum within the box (i)
  • calculating the percentile of the valley (PV) within the box
  • INDEXi=TPi/PV
  • The sum of rainfall in the box is distributed over the number of in the valley
  • Processing and Mapping in the order of minutes (operationalizable)
height:50 width:250 height:50 width:60
height:50 width:150

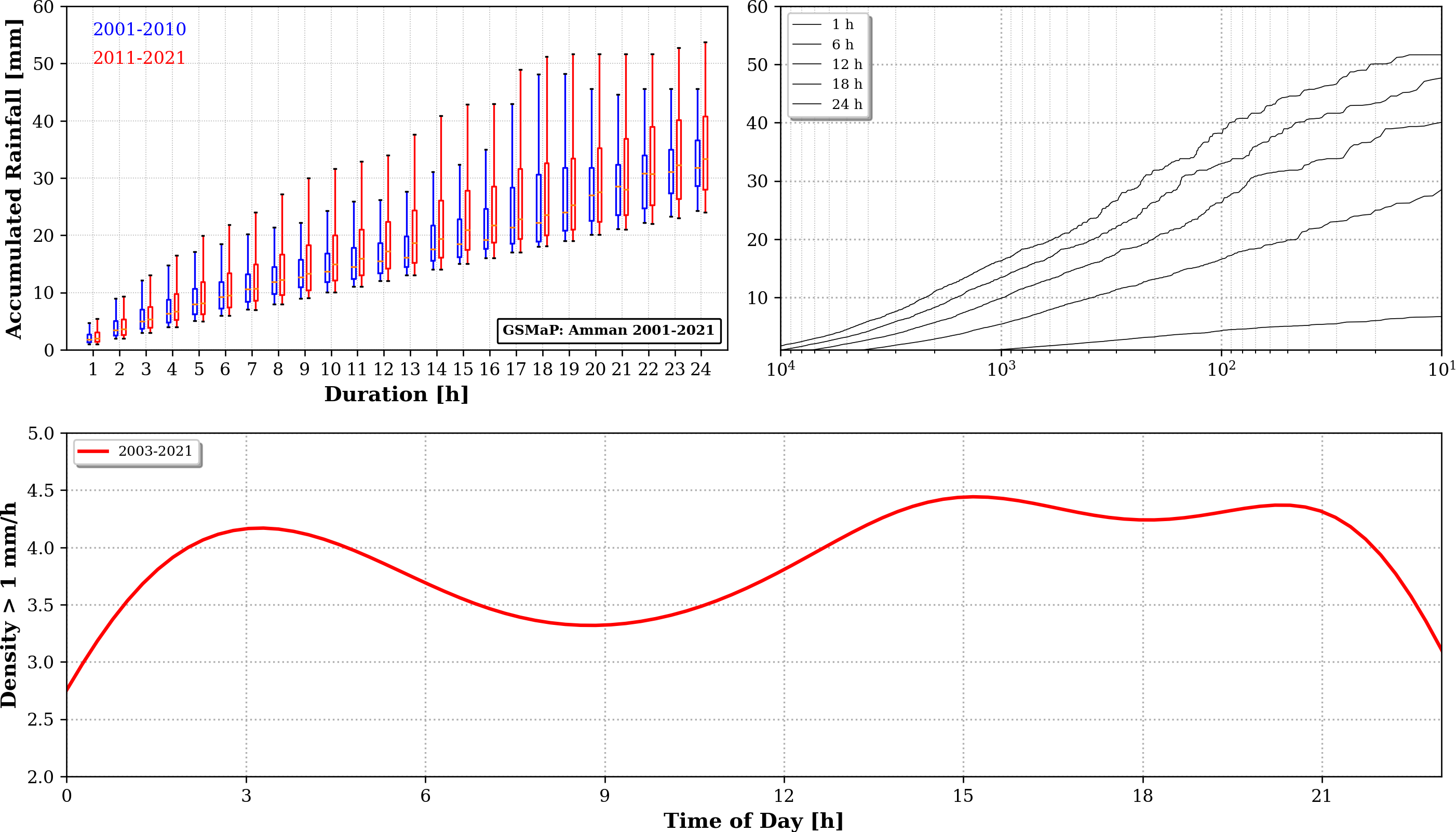

Analysis of Hourly Rainfall Data

height:500 width:1100
GSMaP, Amman

height:50 width:250 height:50 width:60
height:50 width:150

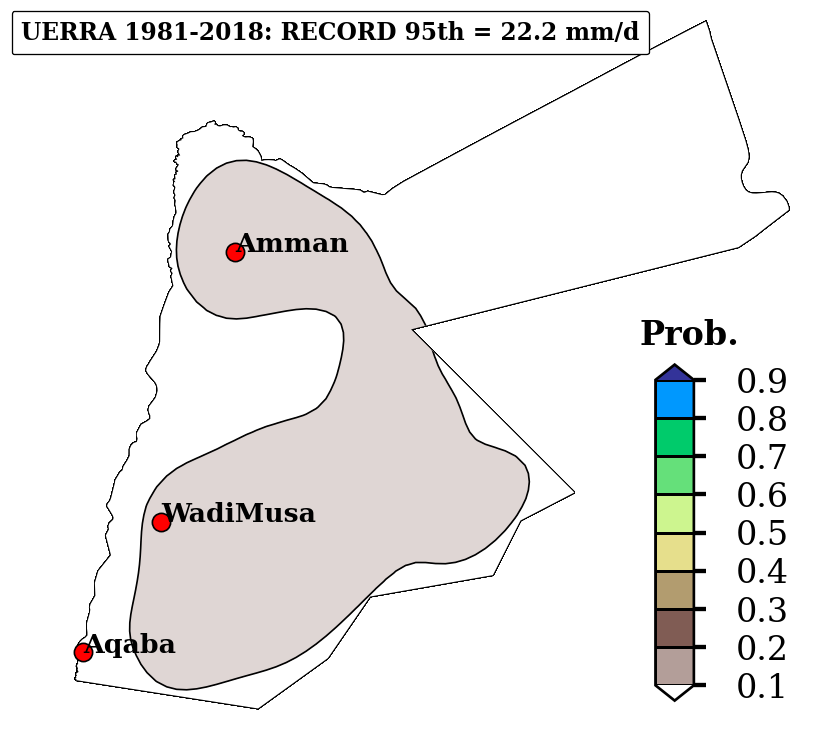

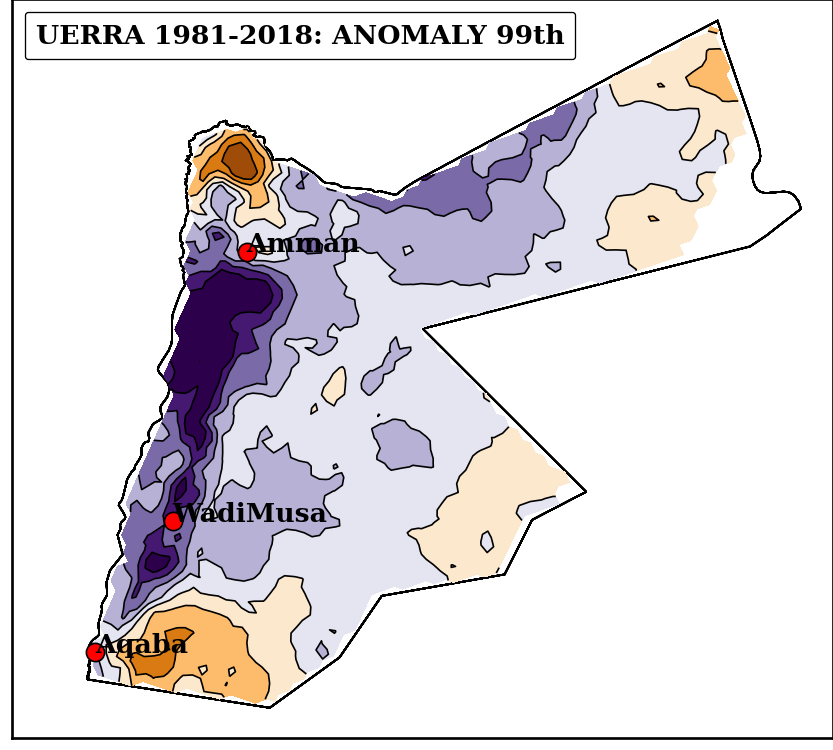

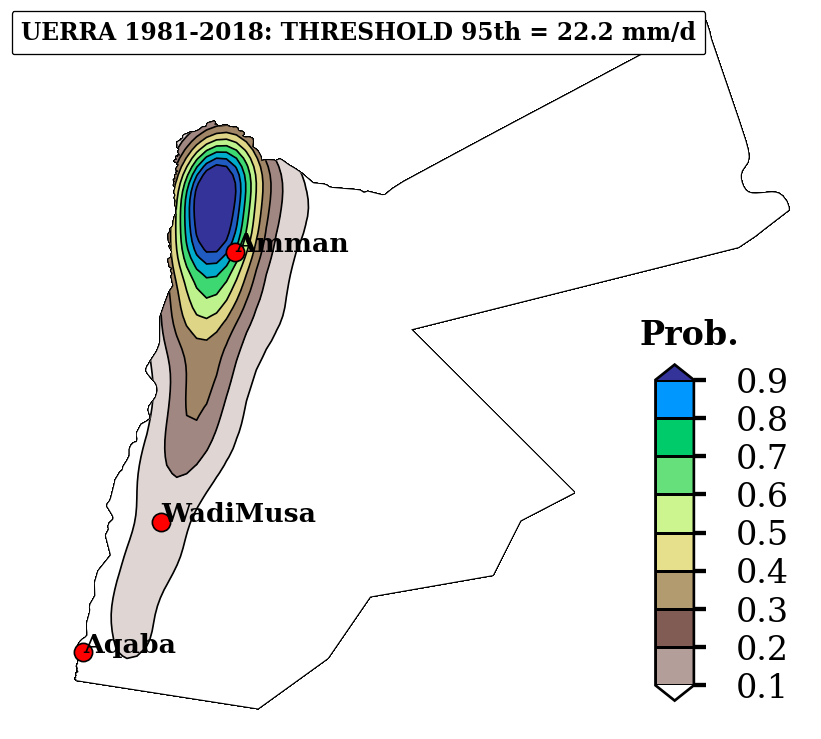

Restrospective Analysis of Heavy Rainfall Patterns

Percentiles of daily Rainfall

Anomalies Threshold Record
height:400 width:350 height:400 width:350 height:400 width:350

UERRA
